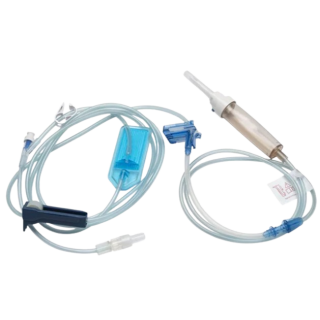

Carefusion 10010453 - Alaris IV Administration Set 115 Length, 20 Drop/mL, 1 SmartSite Y-Injection Site, 1.2 Micron Filter, DEHP-Free, Latex-Free, Sterile, 20/CASE
The Carefusion 10010453 Alaris IV Administration Set is a high-performance, single-use infusion set engineered for precision, safety, and ease of use in intravenous therapy. With an extended tubing length of 115 inches, this set provides flexibility in patient positioning and room layout, especially in busy or space-constrained clinical environments. It is designed for use with Alaris pump modules and features a 1.2-micron in-line filter to safeguard against particulate contamination, bacteria, and air bubbles during medication or fluid administration.
Ideal for high-acuity settings such as critical care, oncology, surgery, and pediatrics, this administration set ensures consistent fluid delivery and secure system integration while meeting the highest standards of patient safety.
| Manufacturer | Application | Number of Ports | Tubing Type |
| 10010453 | IV Pump Set | 1 Port | Standard Bore Tubing |
Key Features and Benefits
Extended Tubing (115"): Long tubing length facilitates setup flexibility and reduces the need for additional extension sets during complex infusions.
20 Drop/mL Drip Chamber: Standard drip rate provides accurate flow calculation in gravity infusions and compatibility with pump-based delivery.
1.2 Micron In-Line Filter: Ensures removal of particulates, bacteria, and air from infusions, protecting patientsparticularly critical for parenteral nutrition, chemotherapy, or blood products.
SmartSite Y-Injection Site: Needle-free valve allows for additional medication delivery without breaking the closed system, minimizing infection and needlestick risks.
Low Sorbing Material: Prevents adsorption of medications such as insulin, nitroglycerin, or chemotherapy agents, ensuring accurate and complete dosing.
DEHP-Free and Latex-Free: Safe for sensitive patients, including those with known allergies or conditions requiring reduced exposure to plasticizers.
Dual Flow Control: Equipped with both a roller clamp and pinch clamp to allow precise manual control of fluid flow or quick shut-off as needed.
Secure Luer Lock Connector: Two-piece male luer lock provides a tight, reliable connection to IV catheters, reducing risk of disconnection or leakage.
Technical Specifications
Tubing Length: 115 inches (approx. 291 cm)
Drip Rate: 20 drops/mL
Filter: 1.2 micron, in-line, for particulate and bacterial retention
Priming Volume: Approx. 26 mL
Injection Site: 1 SmartSite Y-site, needle-free
Tubing Material: Low-sorbing, DEHP-free, latex-free
Connectors: Two-piece male luer lock
Clamps: Roller clamp and pinch clamp
Sterility: Sterile, non-pyrogenic, single-use
Packaging: 20 sets per case
Compatibility and Applications
This administration set is compatible with BD Alaris infusion pump modules and other standard IV systems. It is widely used in the following areas:
Hospitals and ICUs: For fluid replacement, antibiotic therapy, or critical drug infusion
Oncology Centers: For safe chemotherapy drug delivery with low sorbing tubing and 1.2-micron filtration
Pediatric and Neonatal Units: Where accurate dosing and sterility are essential
Surgical Theaters: For continuous intraoperative fluid and medication delivery
Long-Term Care and Home Infusion Settings: Where longer tubing lengths increase patient comfort and access
Usage Guidelines
Inspection: Before opening, verify the packaging is intact and product is within the expiration date.
Priming: Remove air from the tubing and ensure fluid has fully passed through the 1.2-micron filter.
Connection: Attach the luer lock securely to the patients IV access. Use aseptic technique at all points of connection.
Monitoring: Observe for any air bubbles, backflow, occlusions, or dislodgment during the infusion.
Injection Site Use: Use the SmartSite Y-injection port with compatible needle-free connectors or syringes for intermittent medication boluses.
Post-Use: After use, dispose of the set in accordance with your facilitys biohazard waste protocols.
Regulatory and Safety Information
Classification: Class II single-use medical device
Compliance: Manufactured according to ISO 8536 and other global infusion device standards
Biocompatibility: Meets USP Class VI requirements; free from DEHP and natural rubber latex
Sterilization: Ethylene oxide sterilized and validated for use in sterile environments
How to Order
To purchase the Carefusion 10010453 Alaris IV Administration Set (20 sets per case), add it to your facilitys standard procurement list. For bulk orders, clinical compatibility questions, or contract pricing inquiries, contact your authorized medical supply distributor or purchasing department. For urgent orders or support, consult CIA Medical customer service directly at (312) 275-5850.
