Carefusion 28293E - Infusion Set Alaris 20 Drop 18" 50/CS

Carefusion # 28293E - Infusion Set Alaris 20 Drop 18
Part Number Carefusion 28293E
SKU Number CIA7003418
Sell Unit CASE
Ships Within 24 Hours
List Price $475.68
Enter a valid quantity
Product Description

Carefusion 28293E - Infusion Set Alaris 20 Drop 18" 50/CS

Med System III set Check Valve Roller Clamp(s) 2 SmartSite needle-free valve(s) 9'", 96" (1 above pumping segment and 1 below) from 2-piece Male Luer Lock. 20 Drop L: 115 in L: 292 cm PV: 20 mL Fluid Path Sterile

Med System III set Roller Clamp(s) 2 SmartSite needle-free valve(s) 9", 96" (1 above pumping segment and 1 below) from 2-piece Male Luer Lock. 20 Drop L: 115 in L: 292 cm PV: 20 mL Fluid Path Sterile

20 drop

Spike is designed so that 20 drops equal approximately 1 mL.

Drip Chamber

Pump Cassette for MSII

Rollar

Free-flow Protection

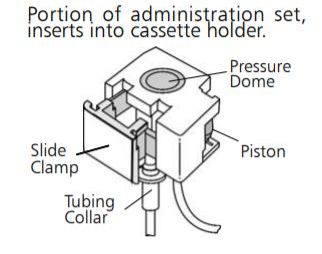

Administration Sets contain a cassette that provides protection from free-flow conditions. Upon removal of the cassette from the MedSystem III, the cassettes slide clamp is pulled to full extension, occluding the tubing and preventing fluid from flowing.

Preparing the Administration Set

Prime the IVAC 28 or 25 Series administration set in accordance with Administration Set Directions for Use. It is important to prime the set properly to eliminate air bubbles. Ensure the cassette slide clamp is pushed in completely so tubing is not occluded. Invert the cassette so tubing is up. Slowly open the regulating clamp and establish fluid flow to fully prime the set. Gently tap the cassette and 'Y' sites as necessary to remove all air. Gently massage the pressure dome to ensure no air bubbles are trapped.

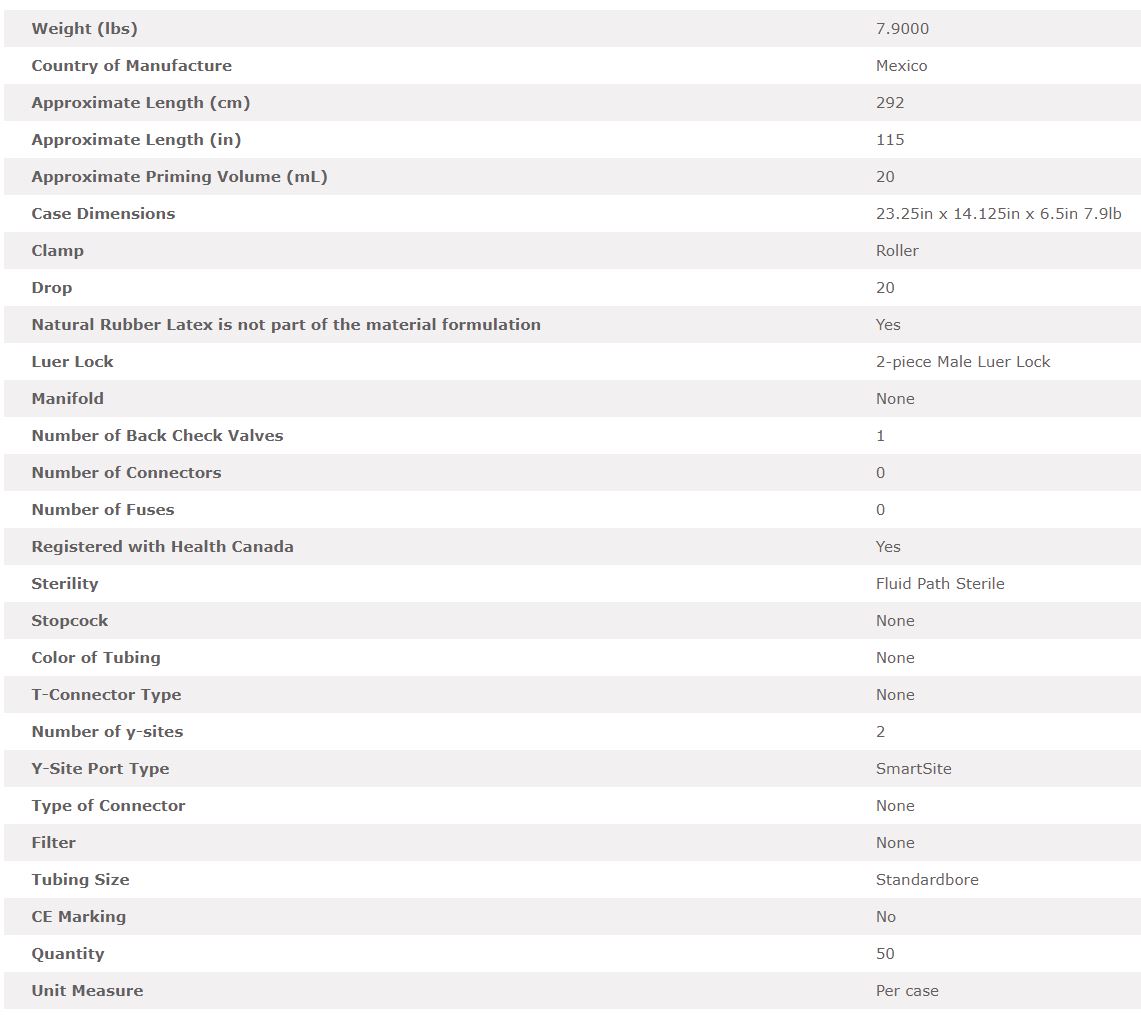

Product Specifications
