Con-Med 60-8005-SYS - Electrosurg Sys 5000 Ea
The System 5000 ESU, Full
The System 5000 Electrosurgery Generator (ESU) unites technology with versatility providing the opportunity to fine tune the electrosurgical generator to specific procedure and surgeon preferences. Unique modes on the System 5000 include the Fluids Mode, for an additional boost of energy in procedures taking place in a fluid environment, and Lap Mode, which limits open circuit voltages to below 2700 volts in all modes and reduces the potential risk of inadvertent burns from capacitive coupling.
Dynamic Response Technology
The System 5000 generator features proprietary Dynamic Response Technology. This technology delivers optimal clinical effects in all operational modes through the continuous synchronization of current and voltage. Advanced Digital Signal Processing architecture enables the system to sample current and voltage over 450,000 times per second and adjust the output accordingly to deliver consistent tissue effect.
Programmable Memory Settings
Recalls up to nine user pre-programmed power/mode settings
Remote Power Control
Allows the surgeon to make power adjustments from within the surgical field using any hand-controlled electrosurgical pencil
Versatility

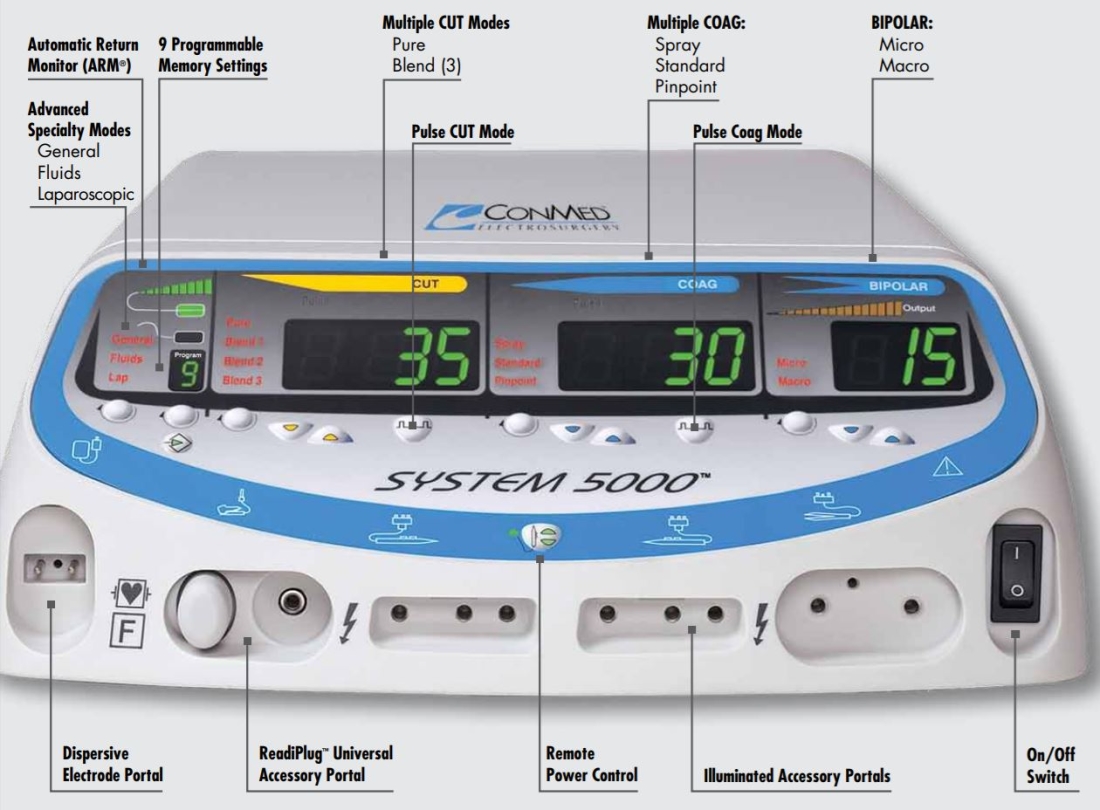

No other generator allows the surgeon to customize the output characteristics as precisely as the System 5000. The System 5000 offers advanced, easy-to-use, specialty modes including:
General Mode
Provides full power performance for open surgical procedures
Fluids Mode
Provides immediate energy delivery for procedures performed in a fluid medium
Laparoscopic Mode
Provides optimal safety by limiting output voltage through microprocessor-controlled circuitry and minimizes the potential harmful effects of capacitive coupling, insulation breakdown and unintended burns
Pulse Cut Mode
Provides precise energy bursts for critical dissections
Multiple Bipolar Modes
Micro bipolar for fine and precise coagulation. Macro bipolar for more energy intensive bipolar applications
Unique Pulse Coag Mode
Pulse Coag provides pulsing bursts of coagulation energy for precise hemostasis in standard or spray modes. Pulse Coag imparts less tissue carbonization than standard coag at equivalent power settings. The electrosurgical energy is pulsed on and off every 2.5 milliseconds, providing higher peak power with an effective lower average power.
Clinical Benefits: Reliability, Precision and Patient Safety
Since its introduction, the System 5000 Electrosurgical Unit (ESU) has become synonymous with safety, performance, precision and reliability. Trusted around the world, the versatility of the System 5000 meets a variety of procedure-specific energy output needs including General, Laparoscopic and Robotic surgery.
Controlled Energy for the Desired Clinical Effect to Tissue
Proprietary Dynamic Response Technology samples the current and voltage 450,000 times per second which enables it to respond to tissue impedance changes in less than 10 milliseconds. This ensures the precise voltage needed is safely delivered to each tissue type.
Reduced Risk of Coupling and Inadvertent Burns Helps Improve Patient Safety
The System 5000s Lap mode provides a unique safety feature that significantly reduces the risk of coupling and inadvertent burns during laparoscopic and robotic surgery by limiting voltage in all monopolar modalities to below 2,700 volts.
Unique Pulse Coag Mode Helps Minimize Blood Loss
With pulsing coagulation energy on and off every 2.5 milliseconds, precise hemostasis with less tissue carbonization than standard coag at equivalent power settings, is achieved.
Validated for Use With da Vinci Surgical System
Custom energy activation cable allows for seamless activation with the da Vinci S & Si surgical robotic systems.
