HLIC HLSV425562 - 100" Flow Controller with 1 injection site, 40 Per/Cs

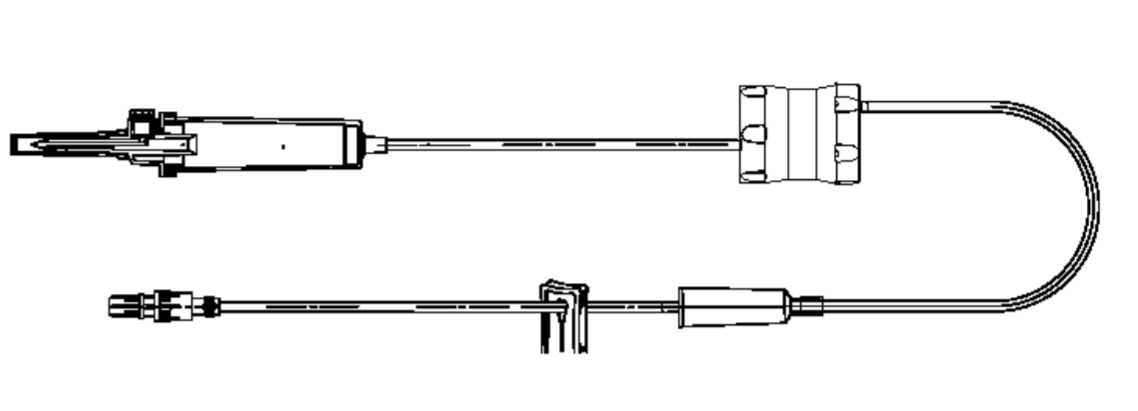

Vented Spike, Flow Control, Slide Clamp, Needle-Free y-Site, Spin Luer, Standard Bore Tubing Priming Volume: 26.8 mL, Length: 100 in. (254 cm)
Extend your IV therapy without overextending yourself!
IV Admin Set w/ 1 Luer Injection Site & Flow Control
Features
- Vented spike.
- Slide Clamp.
- Flow Control.
- Needle-Free y-Site.
- Standard Bore Tubing.
- Spin Luer.
- Priming Volume: 26.8 mL.
- Length: 100 in. (254 cm).
Slide clamp
Slide clamp used to regulate the flow of IV solution. The slide clamp has a graduated opening through which the IV tubing passes. Pushing the tube into the narrow end of the opening constricts it and reduces the flowrate of the IV solution. Sliding the wide end of the opening over the tube increases the flow rate.
What is Priming volume?
The amount of fluid required to fill the entire length of the IV administration set eliminating the air in line. At the beginning of an infusion, all IV sets are primed to avoid delivering air through the line. After the IV bag is spiked with the IV administration set, the IV solution/fluid flows through the tubing to remove the air. The priming volume of IV administration sets vary by manufacturer and affected by the length of the tubing and any add-on devices. The priming volume information can be found on the packaging label of the IV administration set.
DEHP Free
Infusion Therapy Standards of Practice advise to usee administration sets free of di-ethylhexyl-phthalate (DEHP) to administer lipid-based infusates, such as IVFE or TNA. DEHP is lipophilic and is extracted into the lipid solution with commonly used polyvinyl chloride administration sets and containers. DEHP is considered a toxin, and studies have demonstrated increased DEHP levels in lipid solutions, which is especially a risk with neonatal, pediatric, and long-term home care patients (42).
