Moog Medical 360-1400 - Curlin 60000 CMS Multi-Therapy Pump, Each

Moog Medical # 360-1400 - Curlin 60000 CMS Multi-Therapy Pump, Each
Part Number Moog Medical 360-1400
SKU Number CIA7004412
Sell Unit EACH
Ships Within Special Order
List Price $4,255.00
Enter a valid quantity
Product Description

Moog Medical 360-1400 - Curlin 60000 CMS Multi-Therapy Pump, Each

Curlin 6000 CMS Ambulatory Infusion System

The 6000 Clinical Management System (CMS) is a truly ambulatory multi-therapy electronic infusion device capable of Continuous, PCA, TPN, Intermittent, and Variable modes.

The Moog Curlin Infusion pumps have been designed with the user in mind and have the latest in friendly, simple-to-learn technology to allow fast and easy access to the features of these pumps. With a little introduction and training, an operator will quickly be able to program and use these pumps to deliver the therapies prescribed.

Moog Curlin Infusion pump, an easy-to-use, ambulatory or pole mounted infusion device designed to meet the needs of the hospital or alternate site patient. It operates accurately in any position, has a low rate resolution of 2 microliters, and its small, compact, lightweight design allows mobility for ambulatory patients.


Safety

The pumps large numeric keypad and screen, combined with the
simplicity of programming, will potentially lead to enhanced visibilities and less errors. The ability to configure the pump to a specific therapy offers the clinician easier set up and simplifies patient use. The use of standardized IV bags and supplies means no complicated and proprietary components are needed. Regionally based representatives offer localized service and troubleshooting.

Savings

The pumps simplicity and ability to offer multiple therapies
reduce the cost of ownership by streamlining caregiver training
and eliminating the need to purchase multiple infusion pumps
for different therapies. Clinician-based telephone troubleshooting
support reduces the need for caregivers to travel to patients
locations to resolve questions and concerns.

Ease of Use

Ability to custom configure and lock the pump to individual therapies reduces learning curves and potential errors. The 6000 CMS is enabled to accept MOOGs Protocol Library Safety System (PLSS) for additional safety measures.


With Its Larger Color Screen and Information On Demand, The Curlin 6000 CMS Pump Is a Clear Favorite of Clinicians and Patients

The Curlin 6000 CMS Pump Brings a Lot of Advantages to Any Setting

With over 30,000 pumps in use nationwide, Curlin pumps are one of the fastest-selling series of ambulatory pumps on the market today.

Advantages for Hospital/Pain Management Team

  • Hard and soft medication limits confirm accurate dosing
  • Helps eliminate medication transcription errors with Rx downloads from PDA or PC
  • Meets JCAHO recommendations with multiple levels of security
  • Flow rate ranges that are ideal for sedation protocols
  • IOD feature puts most desired infusion information at your fingertips

Advantages for Outpatient Clinics

  • Compact and flexible - used for patient ambulation or pole-mounted administration
  • Helps ensure a steady infusion even at low rates
  • Volume range up to 9,999 milliliters

Advantages for Oncology

  • Continuous-mode programming makes clear how much chemotherapy is being infused
  • Compact portable design provides flexibility for 5-FU infusions in the home
  • Accurate medication delivery, even at low flow rates
  • Compact and flexible - used for patient ambulation or pole-mounted administration

Advantages for Home Infusion

  • Easy for patients and caregivers to use
  • Line pressure monitoring capability fosters proactive line management
  • Support five therapeutic modalities
  • Small enough to fit in a fanny pack for easy carrying
  • Reduces unscheduled nursing visits

Advantages for the Hospice

  • Supports PCA, PCEA and continuous pain management
  • MedLimits with additional incremental control
  • Small design is less intimidating for patient and families
  • Easy-to-read large screen

Provides the Highest Standard of Medication Safety

  • Integral free-flow protection, both pump- and set-based
  • Dose changes are verified and confirmed before being implemented
  • Easy access to shift and hourly totals
  • Enhanced narcotic security; lockboxes prevent tampering
  • Color-coded lockboxes and screen lens help to differentiate therapies
  • Keypad lock codes available

Reduce Therapy Interruption

  • Battery life indicator
  • Uses convenient "C" cell batteries
  • Upstream occlusion detection feature

Improve Flow Accuracy

  • Low flow resolution of 2L
  • Deliver doses in smaller increments
  • Reduces catheter clotting
  • Accuracy of 5%

Reduce Catheter/Line Complications

  • Helps maintain catheter patency with line pressure readings
  • Fosters proactive line management
  • Improves line management with four air-in-line settings, including off

Rugged and Reliable

  • Withstands years of continuous use
  • Provides "uptime" MTBF = 69 months
  • Constructed from aircraft-gauge aluminum

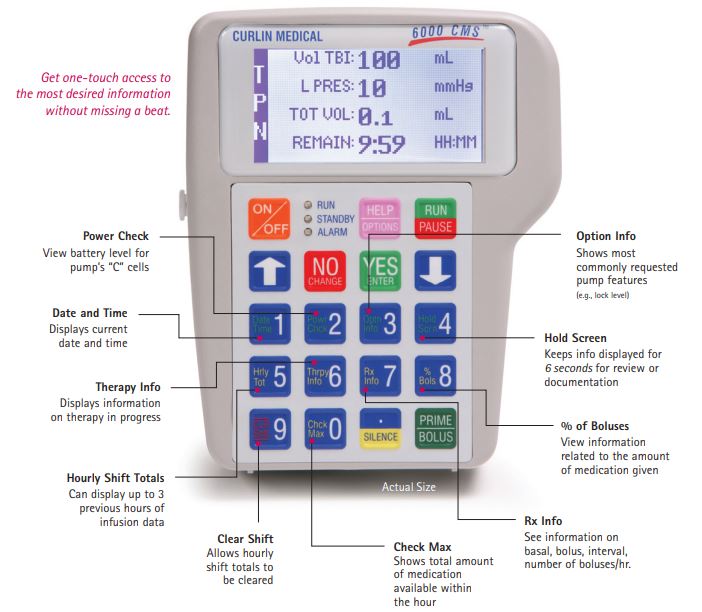

Easy to Use

  • Simple programming
  • Rapid priming feature
  • Easy to learn
  • Accommodates syringes, bottles or bags
  • One-touch access through IOD
  • Easy-to-read large screen and fonts

Product Specifications

Mechanism Curvilinear peristaltic pump action
Therapies Supported Continuous, PCA, TPN, Intermittent, Variable
Size5.1" (13 cm) x 4.0" (10.2 cm) x 2.5" (6.4 cm) 18.1 ounces (513 grams)
DisplayDisplay 2.5" (6.3 cm) x 1.2" (3.1 cm) Continuous backlit with AC
Accuracy+/- 5%*
Flow Rates 0.1 - 400 mL/hr, increments of 0.1 mL/hr
Flow Rates (PCA)** 0.1 - 50 mL/hr IV, 25 mL/hr EPI, 5 mL/hr SQ Max
Volume Limits1.0 - 9,999 mL, increments of 0.1 mL
KVO Rates 0.0 - 10 mL/hr (not available in PCA mode)
Units mL, mg, mcg
Bolus Volume 0.1 - 9.9 mL
Max # of Boluses 15/hr
Patient Bolus0.1 - 9.9 mL/dose
Bolus Lockout 1 - 60 minutes, increments of 1 minute
Power Sources 2 "C" alkaline batteries, AC, external rechargeable battery pack
  • *If used with syringes, this accuracy may vary due to the physical properties of the syringe used
  • **PLSS is required to achieve IV flow rates greater than 9.9 mL/hr

Additional Information

Operating Time
(fully charged batteries)
Nominal 10 hrs. at 400 mL/hr
4 Nominal 30 hrs. at 125 mL/hr
4 Nominal 85 hrs. at 2 mL/hr
AlarmsAir-in-line, high upstream pressure, occlusion upstream, occlusion downstream, door open, set not installed, unattended pump, replace set, empty battery
Adjustable Alarm Volume High / Med / Low / Silent
Data Log 6,000 events, including line pressure, volume infused, time
Additional FeaturesReal-time line pressure, shift totals, on-screen hourly totals, highly visible large fonts, quick repeat feature, continuous back-light-on with AC power, titration in continuous and PCA modes, unused therapies can be locked out, four (4) access levels for security, on-line & context sensitive help screens, data interface port, printable history log
Security Unused therapies can be blocked out, four access levels, different lock box sizes
Software Protocol Library: multiple categories and potential for over 100 protocols
Administration SetsDEHP-free set configurations, needleless injection sites, 0.22 and 1.2 micron filtered sets, yellow-striped epidural sets, sets with 150 mL integral fluid containers
Accessories Bolus cord, pole clamp, and external rechargeable battery pack
